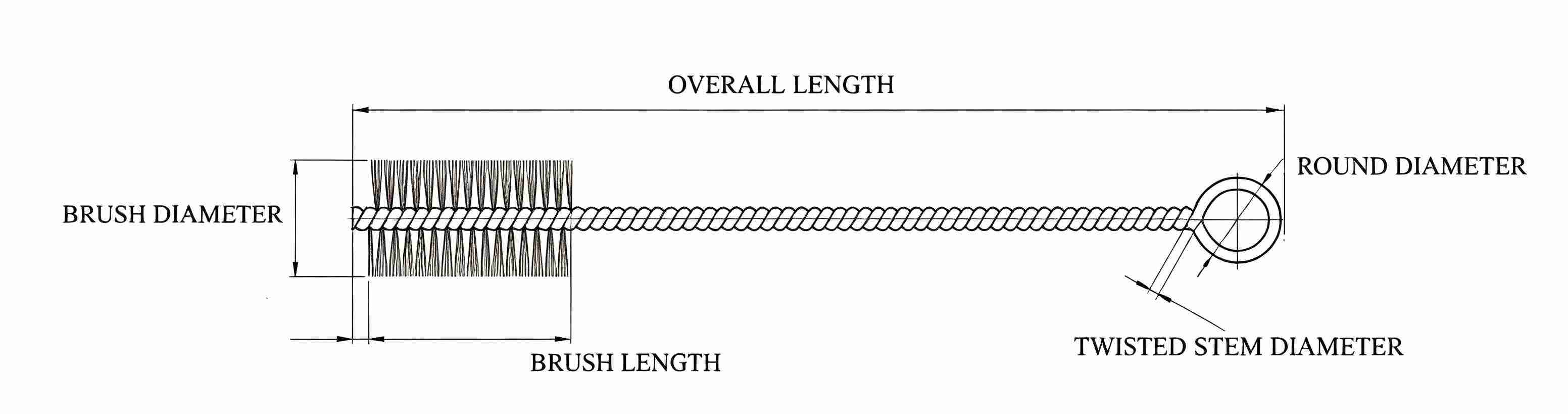

| PRODUCTION RANGE | ||||
| BRUSH DIAMETER | 3mm-100mm | |||
| BRUSH LENGTH | 3mm-500mm | |||
| OVERALL LENGTH | 5mm-1000mm | |||
| TWISTED STEM DIAMETER | 0.5mm-2mm | |||
| WIRE SIZE | 0.03mm-0.7mm | |||
| FILLING MATERIALS | PA,PP,PE,BRASS,STEEL,HORSE HAIR,ETC | |||
| FRAMEWORK MATERIALS | STAINLESS STEEL WIRE,IRON WIRE | |||

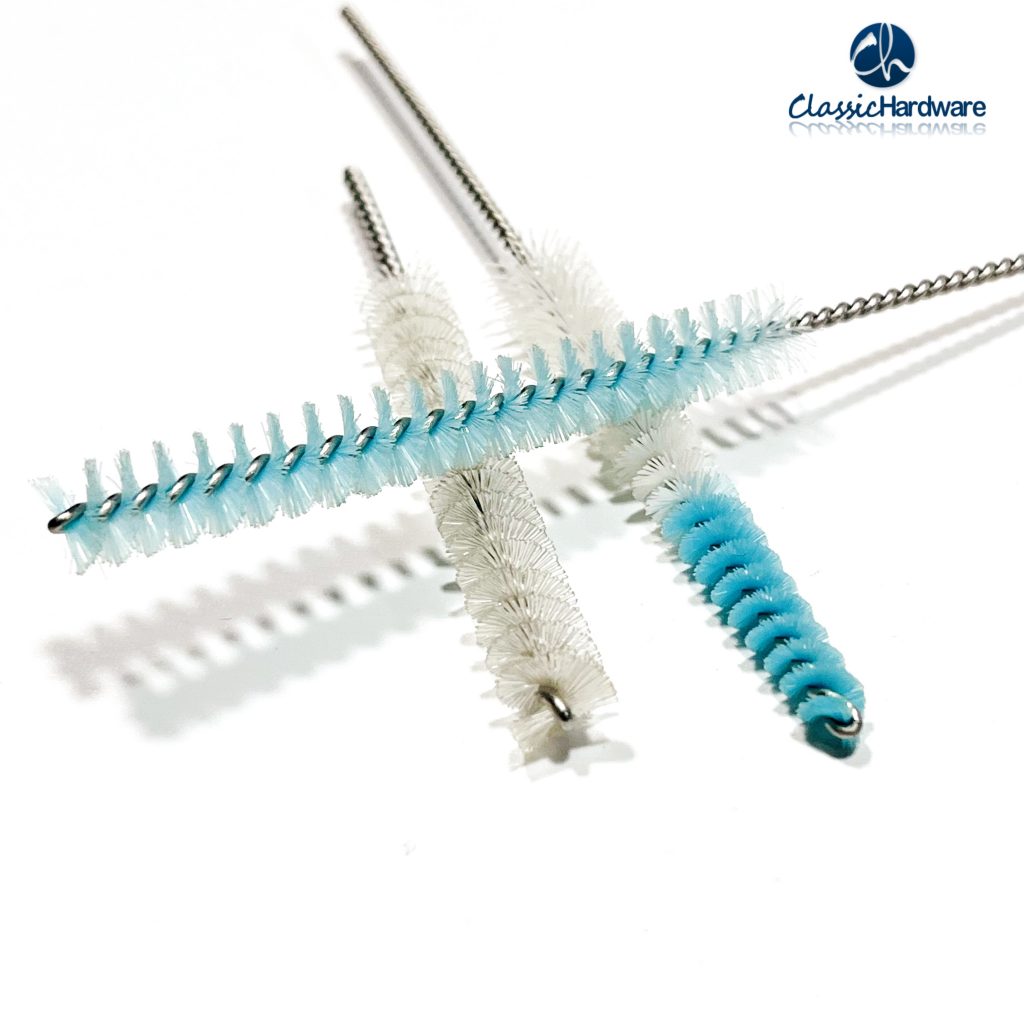

In Twisted Wire Brushes, the filament material is twisted between two wires or four wire.
And there have below 3 constructions:
- Single-Stem Single-Spiral – Filaments are twisted between two stem wires with a single layer of filament.
- Double-Stem Single-Spiral – Filaments are twisted between four stem wires with two stem wires on each side. So this results in a brush with a much stronger base and potentially greater filament density.
- Double-Stem Double-Spiral – Filaments are twisted between four stem wires with two layers of bristles. Each layer is perpendicular to the other with a single stem wire in each quadrant. So this results in a brush with the highest filament density and highest strength.
